A
AR
Adapter to Female
AR
AR
Adapter to Female
Reducer
ACR
Adapter to Coupler
Reducer
F
Adapter to Male
FR
FR
FR
Adapter to Male
Reducer
E
FR
FR
Adapter to Barb
ER
FR
ER
Adapter to Shank
DP
FR
ER
Plug
SA
SA
SA
Adapter to Adapter
Coupler
B
BR

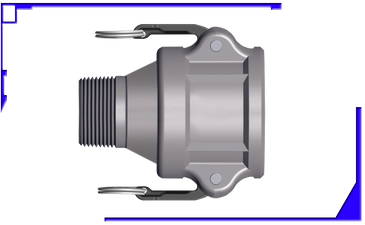

Coupler to Male
BR
BR
Coupler to Male
Reducer
D
Coupler to Female
DR
Coupler to Female
Reducer
C
CR
CR
Coupler to Barb
CR
CR
CR
Coupler to Barb
Reducer
DD
CR
DD
Coupler to Coupler
DC
CR
DD
Dust Cap
B LOCK
B LOCK
B LOCK
Coupler to Male
SELF LOCKING
D LOCK
B LOCK
B LOCK
Coupler to Female
SELF LOCKING
C LOCK
B LOCK
C LOCK
Coupler to Shank
SELF LOCKING
Replacement Arms
Brass Arm
Stainless Arm
Chain
Chain
Key Considerations for Material Choice:
- Compatibility: Ensure the material resists the liquid or gas properties.
- Pressure/Temperature: Stronger materials are needed for higher pressures/temperatures.
- Environment: Corrosion-resistant options are preferable outdoors.
- Cost: Aluminum and polypropylene are budget-friendly; stainless steel and exotic alloys are pricier.
- Weight: Lightweight materials are easier to handle.
Materials are listed by the volume.
1. Aluminum
Properties: Lightweight and corrosion resistant.
Use: Common in irrigation and fuel transfer.
Limitations: Not for highly corrosive chemicals or extreme temperatures.
---------------------
2. Stainless Steel
Properties: Highly corrosion-resistant and strong.
Use: Suitable for harsh environments and corrosive substances,
----------------------
3. Polypropylene
Properties: Lightweight and chemically inert.
Use: Used in agriculture and chemical transfer for fertilizers and mild chemicals.
Limitations: Lower strength; not for high-pressure applications.
----------------------
4. Brass
Properties: Corrosion-resistant and durable.
Use: Common for water, hydraulic oils, and gasoline, particularly in marine applications.
Limitations: Not suitable for strong acids or alkalis.
---------------------
5. Nylon
Properties: Stronger than polypropylene and resistant to abrasion.
Use: Similar to polypropylene, but offers better durability for water and fertilizers.
Limitations: Limited temperature range; less resistant to strong acids.
------------------
Other material Ductile Iron, Hastelloy, and other Exotic Alloys
-
