Contoured backup rings were primarily developed for use with petroleum-based hydraulic fluids. The standard material utilized is 90 durometer nitrile, which facilitates easy installation.
1.1
1.0
1.0

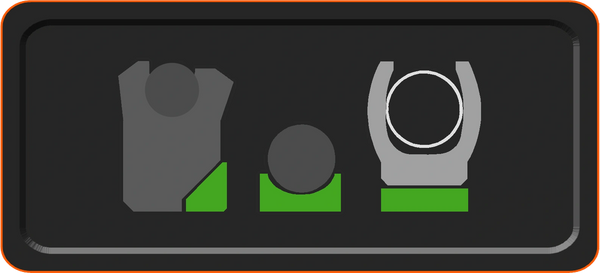

O-rings require back-ups for both static and dynamic sealing applications. If pressure is applied on one side, one back-up is needed on the opposite side. If pressure is applied on both sides, two back-ups are required, one for each side.
1.2
1.0
1.2
Spiral designs adjust to bridge the extrusion gap and accommodate large temperature variations and tolerances..
- Made from PTFE Only
- Easy installation
- For reciprocating movements only
2.0
1.0
1.2
Back-up rings are used with the primary seal for piston and rod.
Back-up rings enhance extrusion resistance and protect seals from damage.
2.1
2.1
2.1
Back-up rings enhance extrusion resistance and protect seals from damage in high pressure, larger gaps, and elevated temperatures.
3.0
2.1
2.1
Keystone shape back-up rings used with the primary seal for piston and rod special applications to provide better stability.
3.2
2.1
3.2
Ultra-High Pressure Back-up Rings
Positively activated back-up rings are designed to prevent extrusion and accommodate cylinder tube expansion under ultra-high pressures. They bridge the radial gap between the piston and bore as pressure increases, sliding along their angle to close metal gland clearance gaps.
3.3
2.1
3.2
External Back-up Ring
Positively activated back-up ring backing up on triangular faces to prevent external seal extrusion.
